Type : Gluing Machine
Applicable Industries : Manufacturing Plant
Showroom Location : Turkey, Italy, Viet Nam, Indonesia, India, Mexico, Russia, Spain, Malaysia, Australia
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Warranty of core components : 1 Year
Core Components : PLC, Pump
Condition : New
Application : PU , EPOXY ,SILICONE
Packaging Type : Poly-wood case
Packaging Material : Poly-wood case
Automatic Grade : Automatic
Driven Type : Electric
Voltage : 230V
Place of Origin : Guangdong, China
Brand Name : Daheng
Weight : 500 KG, 460kg
Warranty : 1 Year
Key Selling Points : High precision
Name : automatic solder paste dispenser desktop gluing machine manufacturer
XYZ Working Area : 1200 X 1200 X 100mm
Mixing Ratio : From 1:1 to 10:1(Adjustable)
Pump : Daheng Patent Plunger Pump
Out-Gluing Rate : 5-66g/5s
Container Volume : A:25L B:10L
Control system : PLC
Tank Capacity : 10L ,25L , 40L optional
Speed : 0.5-24g/s
Packaging Details :
Wooden carton
Automatic glue mixing machine and potting machine
Port : Guangzhou, Shenzhen
Supply Ability : 600 Set/Sets per Month Glue Dispenser for led Strip
Price : $9,900.00/sets 1-1 sets
Adjustable Ratio | 1 :1 ---10:1 adjustable |
Output Speed | 0.5g/s -12g per single pump |
Mixing accuracy | +/- 2% |
Program memory | 10pcs |
Viscosity | 50cps~35000cps |
Operation mode | manual / automatic/ Third party signal |
Ratio control | PLC/double cylinder plunger pump |
Flow control | Digital input |
Program mode | Tech program |
Automatic control system | Touch screen and trigger |
Mixed mode | Dynamic mixing (with self-cleaning function) |
Tank | Stainless tank A(25L)and stainless tank B(10L) |
Liquid level sensor (low liquid level /high liquid level and limit liquid level) | |
Tank stir | |
Constant heat (temperature to 80°C) | |
Y type Filter | |
Voltage | 220V/50Hz/3500W |
Input air pressure | 0.4MPa—0.7MPa |
Dimension | 1200mm×600mm X1500mm |
Machine frame | SPCC+Industrial aluminium +stainless +metal plate |
Others | AB tank 、A pump、AB pipeline heating function |
Q:Do you offer oversea service? A:We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service. | ||||||||
Q:How dose your factory do regarding quality control? A:We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail. | ||||||||
Q:What are your payment terms? A:Normally, 30% advance by T/T and balance paid off before delivery. | ||||||||
Q:Are you a factory or trading company ? A:We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years. |
![]() |

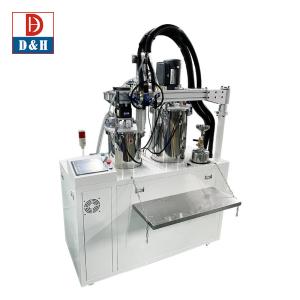

Desktop Gluing Machine Out-Gluing Rate 5-66g/5s Automatic Solder Paste Dispenser Cold Glue Images |
